CHO-K1 Human CCR5 β-Arrestin Cell Line

For research use only. Not intended for human or animal clinical trials, therapeutic or diagnostic use.

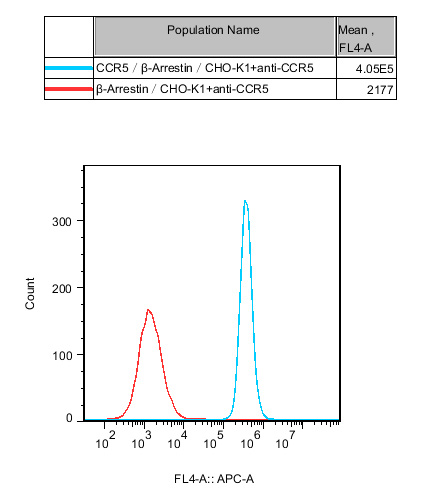

Figure 1. Recombinant CCR5/β-Arrestin/CHO-K1 stably expressing CCR5

Blue curve: CCR5/β‑Arrestin/CHO-K1 stained with anti‑CCR5 antibody (Mean FL4‑A = 4.05E5). Red curve: β‑Arrestin/CHO-K1 negative control stained with anti‑CCR5 antibody (Mean FL4‑A = 2177). The obvious shift of fluorescence signal demonstrates high expression level of CCR5 receptor on cell membrane.

Figure 2. Dose response of Human CCL3 in CCR5 β-Arrestin CHO-K1 Cell Line (C18)

The IC50 value was determined to be 0.25 μg/mL. Data shows dose-dependent inhibition of β-Arrestin recruitment by Leronlimab.

Figure 3. Inhibition of hCCL3-induced β-Arrestin Recruitment in CCR5 β-Arrestin CHO-K1 Cells (C18)

The EC50 = 5.99 ng/ml with S/B ratio =37.1. The signal was measured as relative light units (RLU). The result demonstrates hCCL3 induces β-Arrestin recruitment in a dose-dependent manner.

Cell Resuscitation
1)Rapidly thaw the frozen cells in a 37 °C water bath for approximately 60 seconds. Once thawed (which may take slightly less or more than 60 seconds), immediately transfer the cell suspension from the cryovial into a 15 mL centrifuge tube containing 10 mL of pre-warmed CHO-K1 Human CCR5 β-Arrestin Cell Line complete culture medium.
2)Centrifuge cells at 1000 rpm for 5 min to remove medium, then resuspend cells in 5 mL of pre-warmed complete medium.
3)Transfer the cell suspension into a T25 culture flask and incubate at 37 °C with 5% CO₂.
4)After approximately 24–36 hours, replace the medium or passage the cells to remove non-adherent dead cells.

Subculturing procedure
1)When the cell density reaches the appropriate confluency for passaging, wash the cells with PBS, then add 1 mL trypsin to detach the cells. When more than 80% of the cells detach upon gently tapping the culture flask, add complete culture medium to terminate digestion. Gently pipette to obtain a single-cell suspension, transfer to a 15 mL centrifuge tube, and centrifuge at 1000 rpm for 5 minutes.

2)Discard supernatant after centrifugation. Resuspend cells in fresh medium to a single-cell suspension and transfer to a new culture flask for continued growth.

Cell Freezing
After trypsinization and centrifugation of cells from each T75 flask or 10 cm culture dish, discard the supernatant. Add 2 mL of cryopreservation medium (90% FBS + 10% DMSO), gently resuspend thoroughly, and aliquot into two cryovials. Immediately place the cryovials into a controlled-rate freezing container (e.g., Nalgene 5100-0001), fill with isopropanol to the indicated level, and store at −80 °C. After 24 hours, transfer the cryovials to liquid nitrogen for long-term storage.
