CHO-K1 Human CCR4 Cell Line

CHO-K1 Human CCR4 Cell Line

Cat. No: RQP71633

Size: 1 vial of frozen cells (>1E6 per vial in 1 mL)

Unit Price: Contact For Pricing

Contact us

Description

Product Info

Biological Info

Assay Data

Cell Culture



This product is a CHO-K1 stable cell line that stably expresses tag-free human CCR4 receptor. CCL17 or CCL22 binding to CCR4 induces β-arrestin recruitment. Receptor activity can be quantified in live cells in a dose-response manner. This cell line is suitable for high-throughput screening (HTS) and receptor functional evaluation assays.

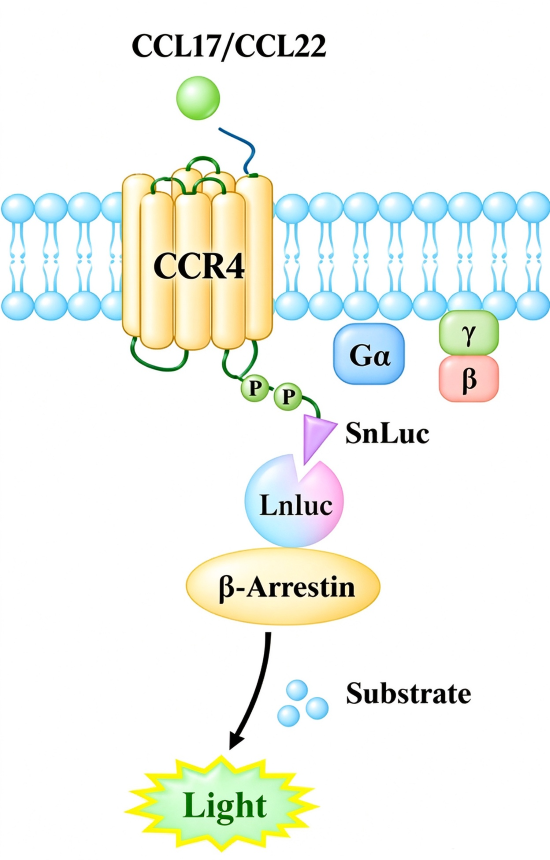

Schematic of split luciferase β-arrestin recruitment assay: CCL17 or CCL22 binds CCR4 receptor, induces β-arrestin recruitment and generates luminescent signal.

Figure 1. Schematic diagram of CCR4 CHO-K1 cell model

Assay Principle

Schematic diagram of β-arrestin recruitment assay for GPCR, agonist triggers β-arrestin recruitment and luciferase complementation, luminescence detected by plate reader for dose-response curve.

Upon agonist binding, the GPCR becomes activated and recruits β-arrestin. The β-arrestin-luciferase fusion protein is brought into proximity with the receptor complex. Addition of substrate restores luciferase activity and generates luminescence signals. The luminescence intensity correlates with the level of β-arrestin recruitment, which can be quantified via a plate reader to generate dose-response curves for ligand characterization.

Cat. No RQP71633
Product Name CHO-K1 Human CCR4 Cell Line
Engineering method plasmid transfection
Culture Properties Adherent
Stability 32passages (in-house test, that not means the cell line will be instable beyond the passages we tested.)
Mycoplasma Status Negative
Culture Medium F12K+10%FBS+5 μg/ml Puromycin
Freeze Medium 90% FBS+10% DMSO
Storage Conditions Liquid nitrogen immediately upon delivery
Transducer Gi
Application Functional assay for CCR4
Safety Precautions

Wear lab coat, disposable gloves to avoid direct sample contact.

For spills: apply disinfectant, allow full inactivation, then clean up.

Seal samples properly during transportation to prevent leakage and biological contamination.





For research use only. Not intended for human or animal clinical trials, therapeutic or diagnostic use.

Target Class GPCR
Family C-C motif chemokine receptors
Sub Family Class A(Rhodopsin)
Gene Name CCR4
Gene Aliases
CC-CKR-4;CMKBR4;CKR4;K5-5;ChemR13;CD194
Gene ID 1233
Accession Number NM_005508
UniProt Number P51679
Protein Name C-C chemokine receptor type 4
Protein Aliases C-C CKR-4; CCR-4; CD194 antigen; K5-5
Target Species Human
Host cell CHO-K1

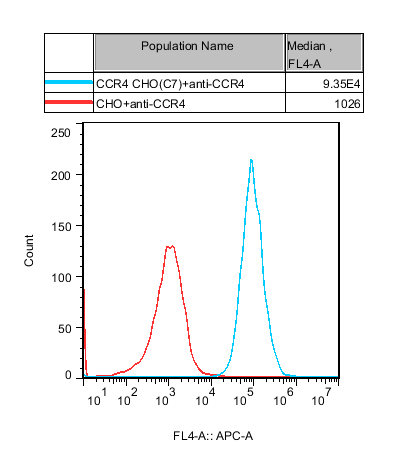

Flow cytometry histogram showing CCR4 expression: CCR4 CHO-K1 stable cell line (blue) vs parental CHO-K1 control (red) stained with anti‑CCR4 antibody.

Figure 1. Recombinant CCR4 CHO-K1 stably expressing CCR4

Blue curve: CCR4/CHO-K1 cells (clone C7) stained with anti-CCR4 antibody, median fluorescence intensity (MFI) = 9.35×10⁴. Red curve: Parental CHO-K1 cells stained with anti-CCR4 antibody as negative control, MFI = 1026. The clear shift of fluorescence peak demonstrates robust and stable expression of human CCR4 receptor on the cell membrane.



Cell Resuscitation
1)Rapidly thaw the frozen cells in a 37 °C water bath for approximately 60 seconds. Once thawed (which may take slightly less or more than 60 seconds), immediately transfer the cell suspension from the cryovial into a 15 mL centrifuge tube containing 10 mL of pre-warmed CHO-K1 Human CCR4 Cell Line complete culture medium.
2)Centrifuge cells at 1000 rpm for 5 min to remove medium, then resuspend cells in 5 mL of pre-warmed complete medium.
3)Transfer the cell suspension into a T25 culture flask and incubate at 37 °C with 5% CO₂.
4)After approximately 24–36 hours, replace the medium or passage the cells to remove non-adherent dead cells.


Subculturing procedure
1)When the cell density reaches the appropriate confluency for passaging, wash the cells with PBS, then add 1 mL trypsin to detach the cells. When more than 80% of the cells detach upon gently tapping the culture flask, add complete culture medium to terminate digestion. Gently pipette to obtain a single-cell suspension, transfer to a 15 mL centrifuge tube, and centrifuge at 1000 rpm for 5 minutes.

2)Discard supernatant after centrifugation. Resuspend cells in fresh medium to a single-cell suspension and transfer to a new culture flask for continued growth.


Cell Freezing
After trypsinization and centrifugation of cells from each T75 flask or 10 cm culture dish, discard the supernatant. Add 2 mL of cryopreservation medium (90% FBS + 10% DMSO), gently resuspend thoroughly, and aliquot into two cryovials. Immediately place the cryovials into a controlled-rate freezing container (e.g., Nalgene 5100-0001), fill with isopropanol to the indicated level, and store at −80 °C. After 24 hours, transfer the cryovials to liquid nitrogen for long-term storage.
